Filter activity by Relationship Type in Primavera P6

Sometimes, we need to filter activities based on their relationship type. For example, you might want to display only activities with a Finish-to-Start (FS) relationship.

Unfortunately, the default filter function in Primavera P6 doesn’t support this directly. But don’t worry — I’ll show you how to achieve this using the Report feature.

Step-by-Step Guide

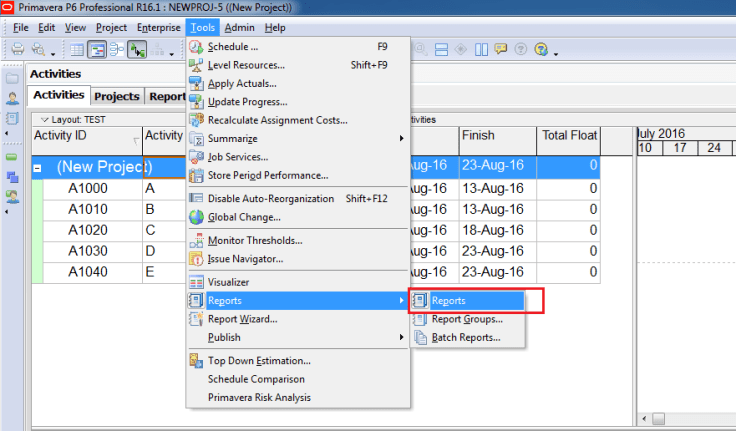

• Go to Tools → Reports.

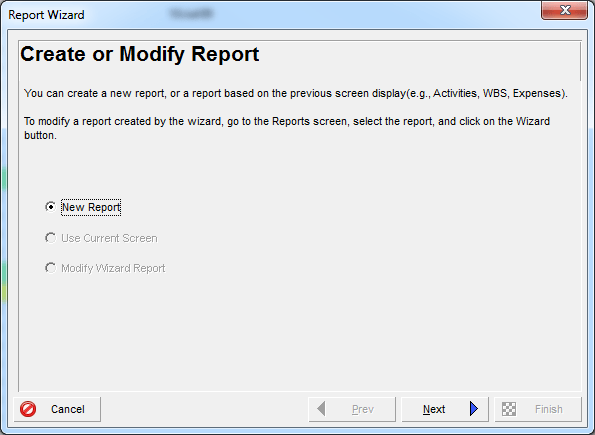

• Click the Add button to create a new report.
• Click Next to proceed.

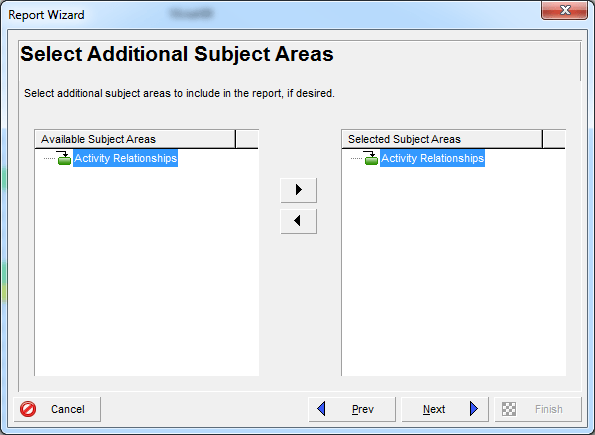

• Choose Activity Relationship as the subject.
• Click Next.

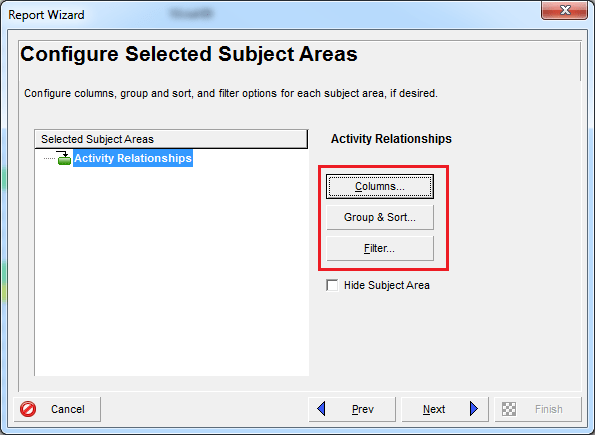

• Click the Columns button to select which columns you want to display in the report.

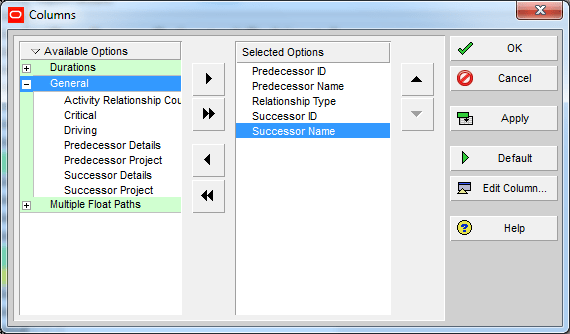

• After selecting the desired columns (as shown in the screenshot), click OK.

• Click the Filter button to filter activities based on relationship type.

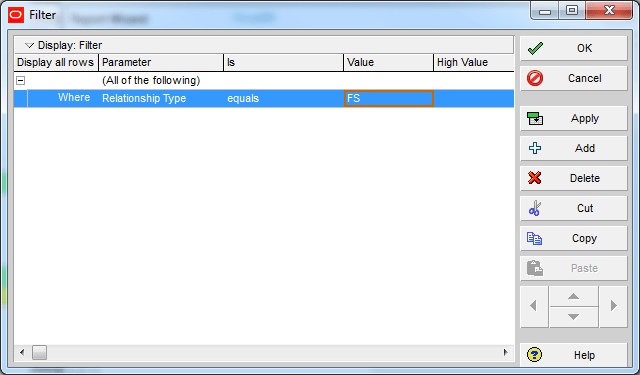

• Set the filter to show only Finish-to-Start (FS) relationships (refer to the screenshot for exact values).
• Click OK, then Next.

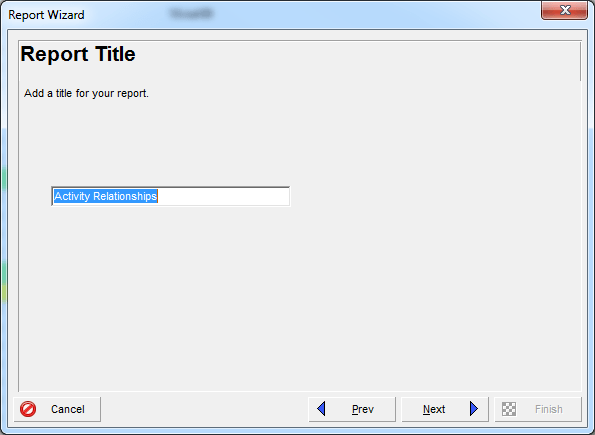

• Give your report a title.

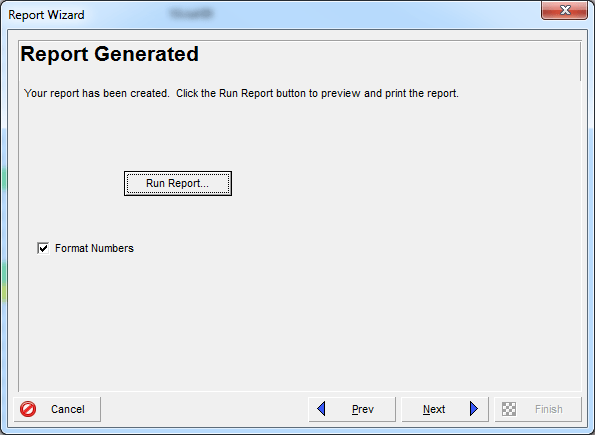

• Click Next, then click Run Report to preview the results.

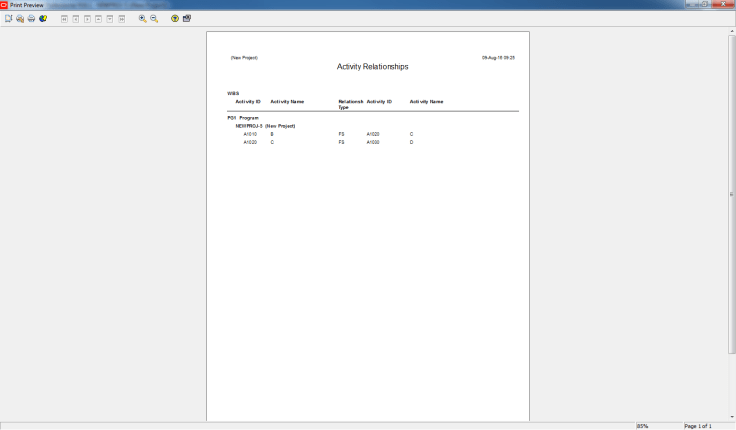

• The report will display all activities with FS relationships.

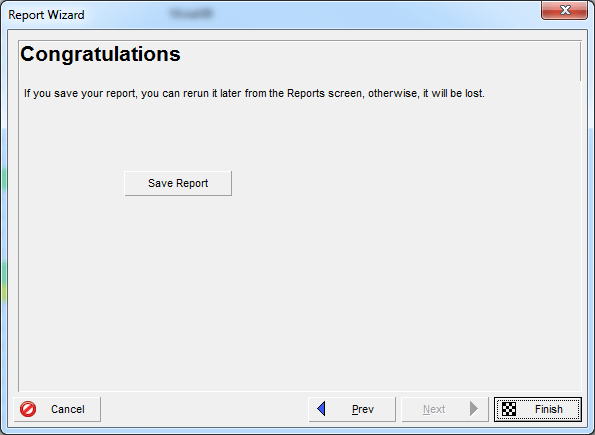

• Close the preview, click Next, and then Save Report.

Now you know how to filter activities by relationship type in Primavera P6 using the Report function.
