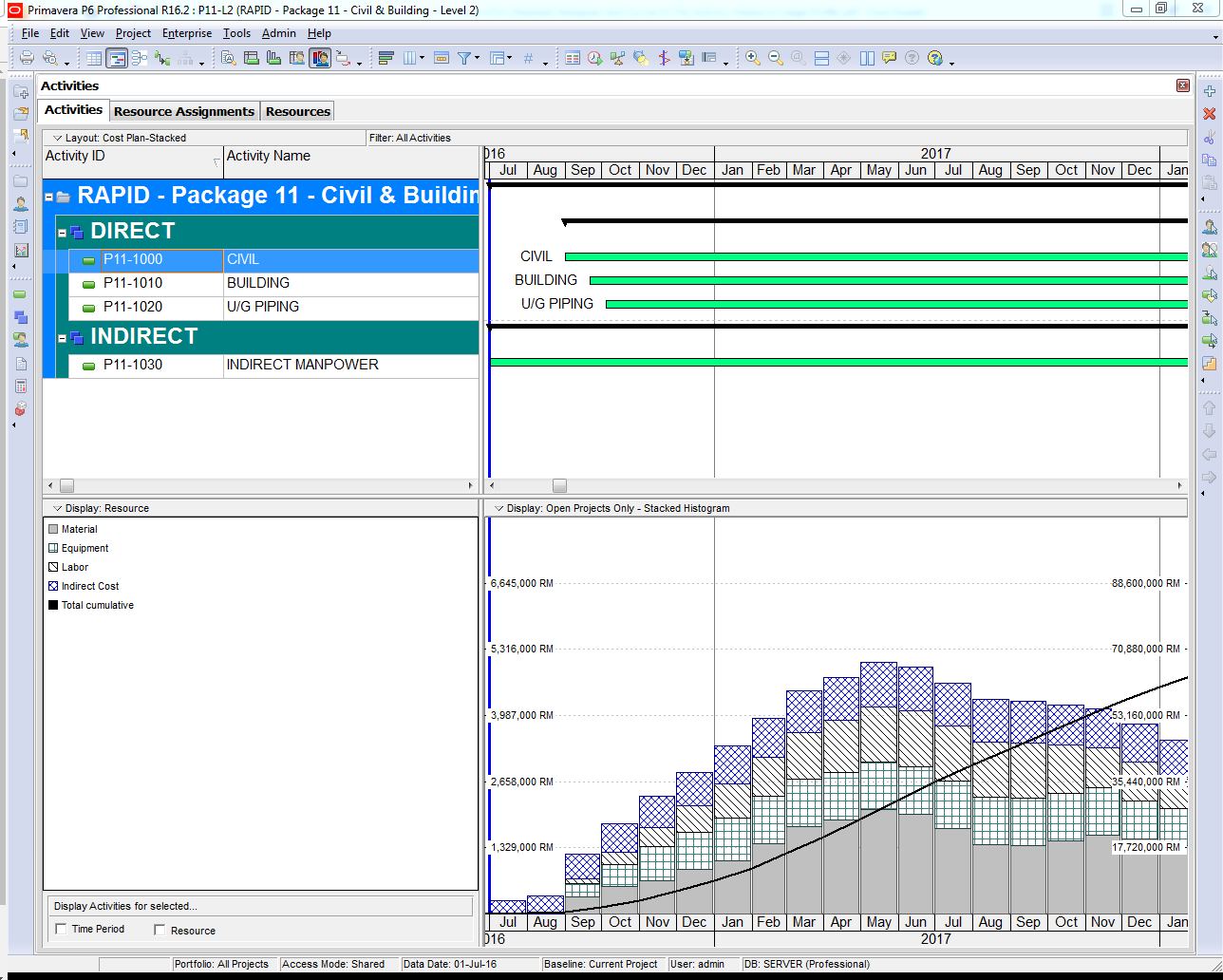

We create a Stacked Histogram like below picture:
We need to Print the diagram with the Legend but there is no option to show the Legend:
In other diagram (not stacked diagram) we can easily see the option to show Legend:

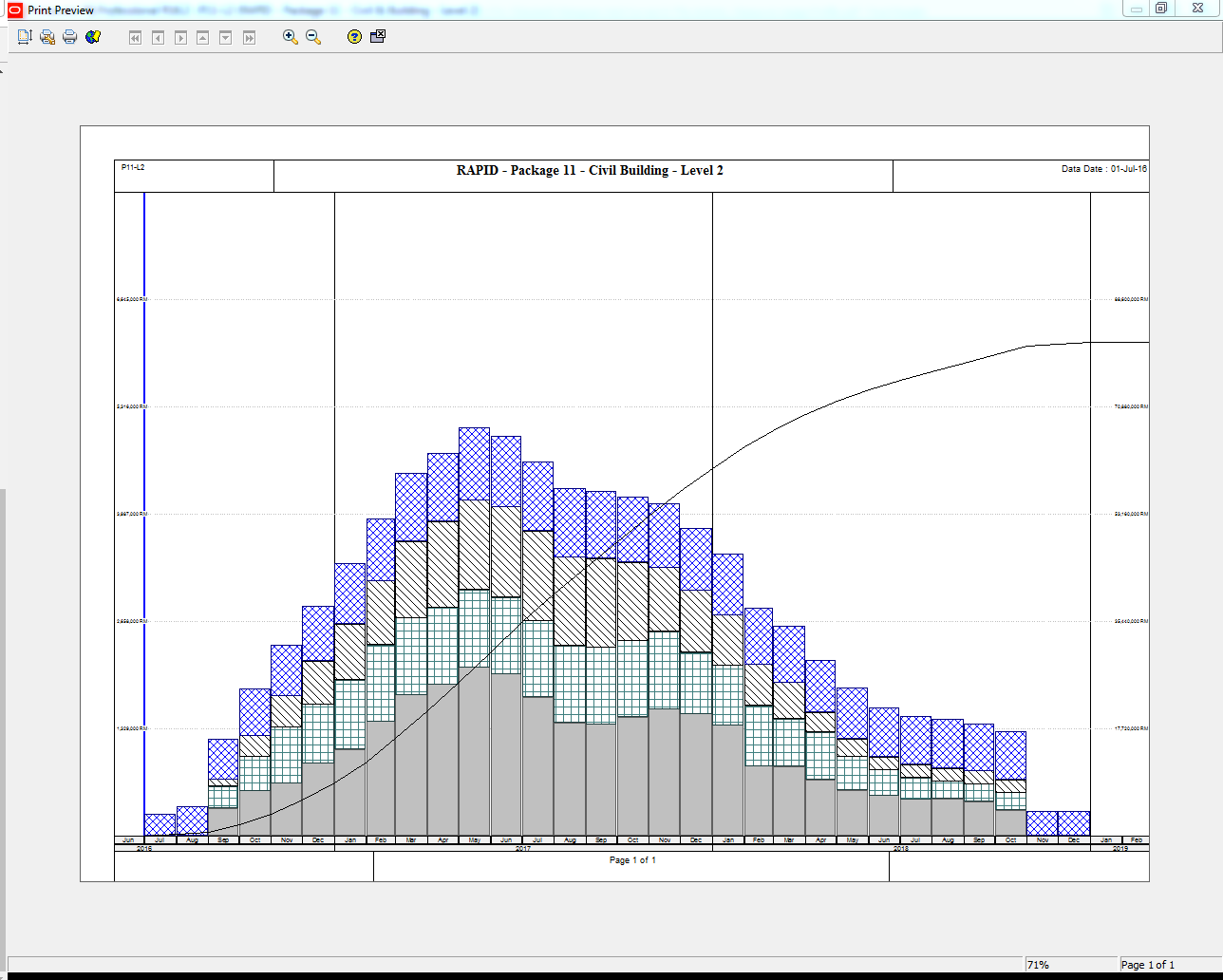

The report will be very hard to understand:
I will show you How to show the Legend in the Printed report.

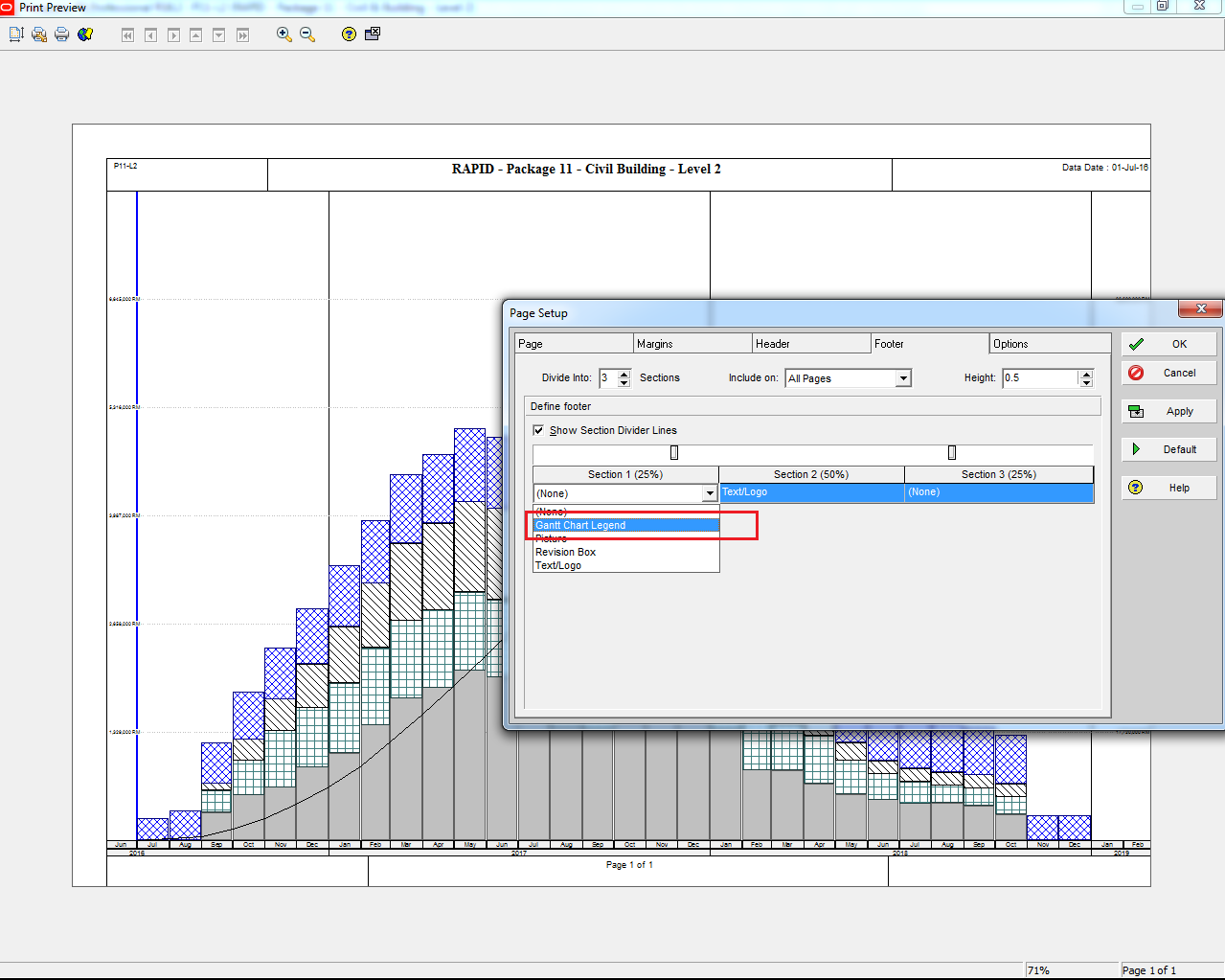

Click on Print Preview -> Page Setup -> Footer tab. Select to show Gantt Chart Legend.

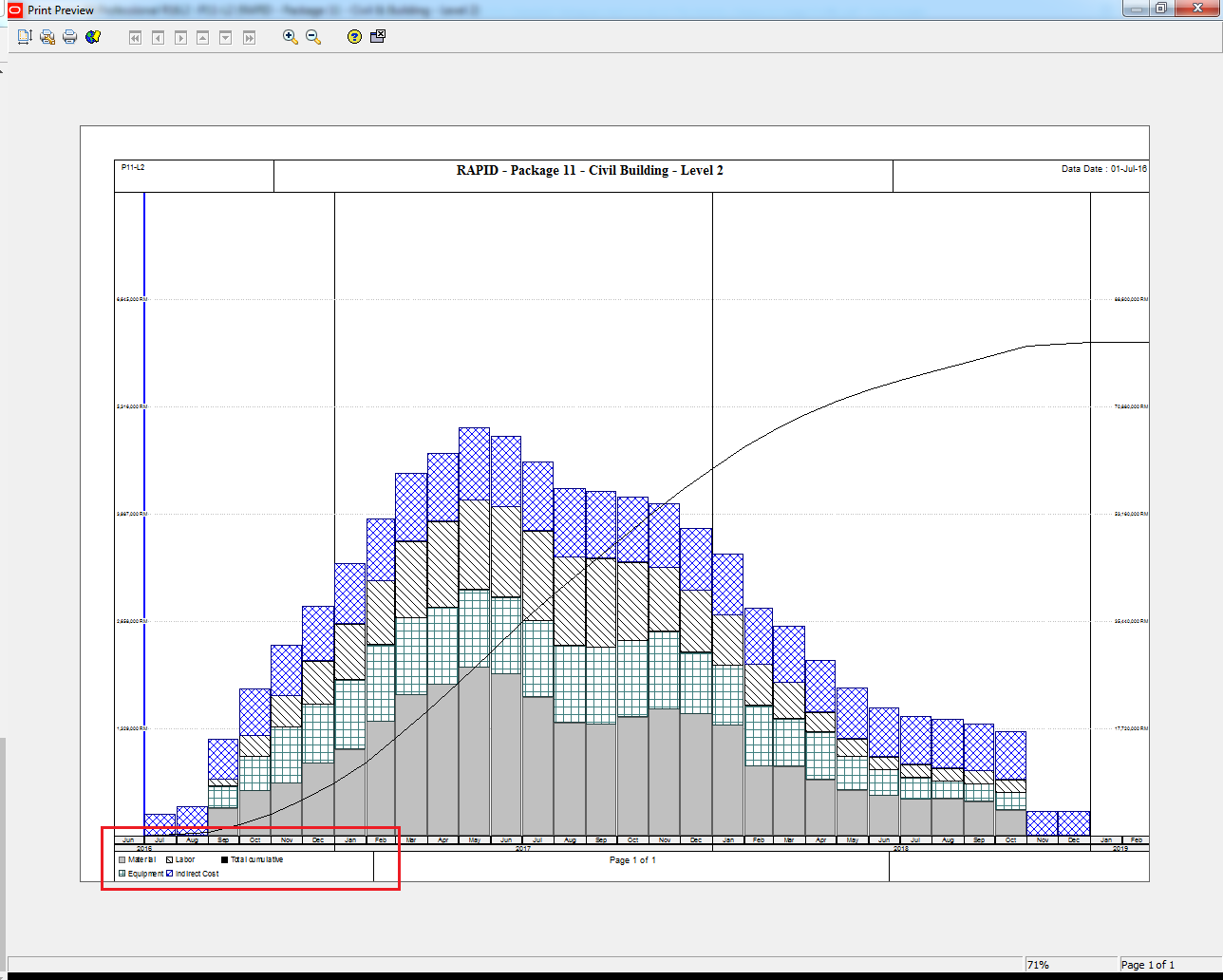

Now P6 will show the Legend in our report:
Hi, what is the right method when your resource changed its unit rate along the course of the project providing that it only affect the current date and so on, because what I have observed it will give a retroactive effect. Thanks
In Resource window -> Select resource you need to adjust rate -> in Units & Prices tab -> you can add a new rate, and enter the Effective date. So that the new price is only used from “Effective date”.
Thanks really help a lot!!!
your articles are very good. i read some of them, quite to the point and guide reader how to do step by step.
LikeLiked by 1 person
Thank you 🙂 I’m very happy when you enjoy my blog
Hi, I get this. But I am trying to print a view which has the Gantt chart at the top and a stacked histogram at the bottom. Just a small project so it all fits on the 1 page.
Unfortunately I can’t get it so that it shows the legend for both the Gantt and the Histogram. In fact it ONLY shows the legend for the Gantt (which is pretty self explanatory anyway). And I have no idea which bar is which on the Histogram, which makes it next to useless.
How do i get it so that I can show both the Gantt and the Histogram (I can do that bit) AND the legend for both or just the legend for the Histogram?
